wow raster

Glazed porcelain

cert green wow texiture

CHALK LINES S

6 x 6
Thickness: 8.5mm

ASH LINES S

6 x 6
Thickness: 8.5mm

MOSS LINES S

6 x 6
Thickness: 8.5mm

DEEP BLUE LINES S

6 x 6
Thickness: 8.5mm

CLAY LINES S

6 x 6
Thickness: 8.5mm

OFF WHITE LINES S

6 x 6
Thickness: 8.5mm

CHALK GRID M

6 x 6
Thickness: 8.5mm

ASH GRID M

6 x 6
Thickness: 8.5mm

MOSS GRID M

6 x 6
Thickness: 8.5mm

DEEP BLUE GRID M

6 x 6
Thickness: 8.5mm

CLAY GRID M

6 x 6
Thickness: 8.5mm

OFF WHITE GRID M

6 x 6
Thickness: 8.5mm

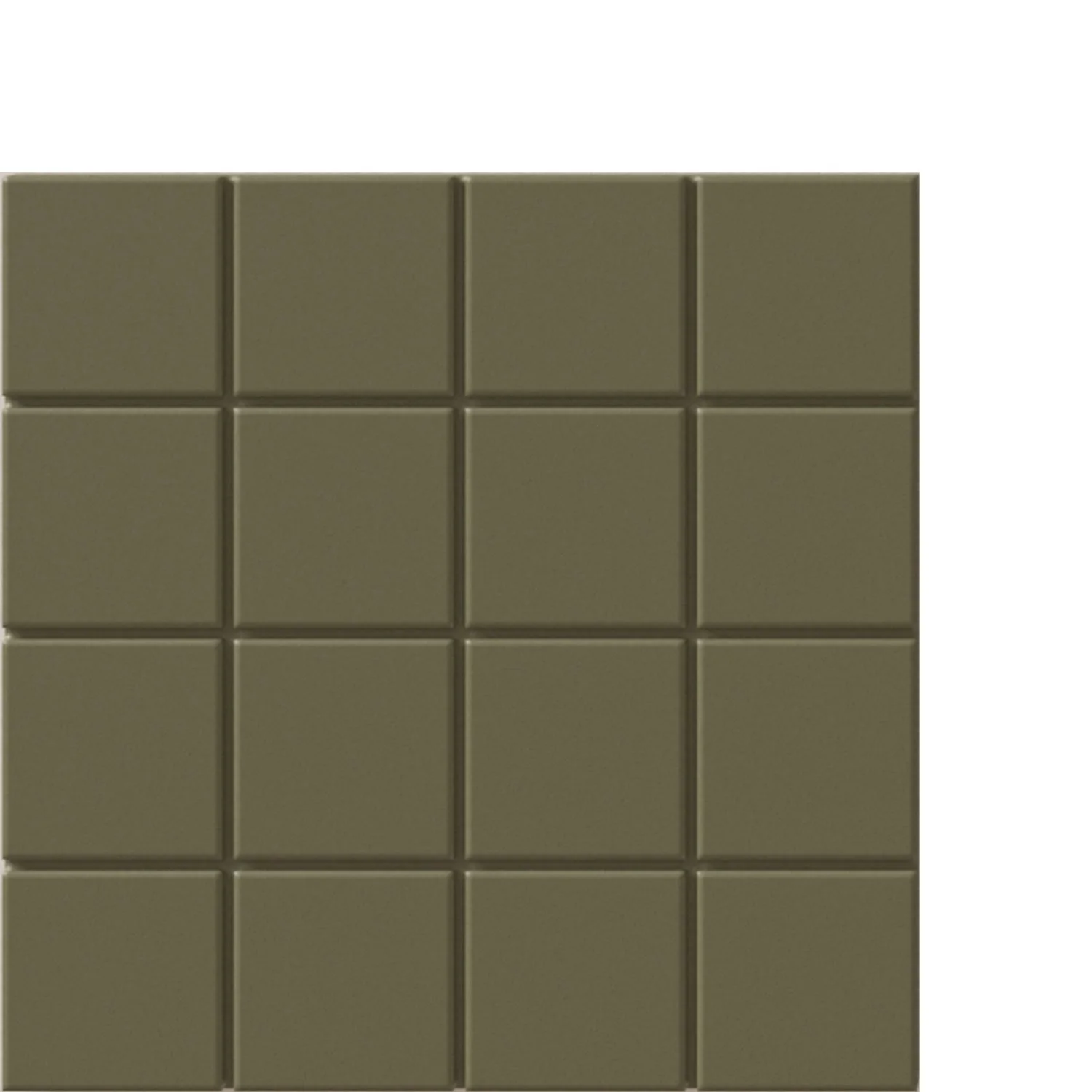

MOSS GRID S

6 x 6
Thickness: 8.5mm




  • Ongoing design evolution. Architecture speaks of space, form, place & function.
    Raster is a matrix data structure, made up of a collection of tiny, uniform sized pixels arranged in a grid, used to create complex compositions.

  • WOW Raster is suitable for walls and floor as well as interior and exterior applications.
    Porcelain and stone products contain very low levels of silica. However, fabrication must comply with OSHA standards and regulations to ensure proper safety practices.

    Water Absorption: <=0.5%
    Break Strength: 35 N/mm2
    Chemical Resistance: GA, GHA
    Crazing Resistance: Pass
    Frost Resistance: Pass
    Stain Resistance: 5
    Fire Rating: Non Combustible
    Abrasion Resistance of Glazed Tiles: PEI 4 (Chalk, Off White); PEI 3 (Clay, Ash) ; PEI 2 (Moss, Deep Blue)
    DCOF/Slip Rating: >0.42 | R10
    Shade & Texture Rating: V2

  • Lines S 6” x 6” packing: 25 pcs. (5.899 sq. ft.) per carton, Weight: 23.678 lbs. per carton
    Grid M 6” x 6” packing: 25 pcs. (5.899 sq. ft.) per carton, Weight: 23.678 lbs. per carton

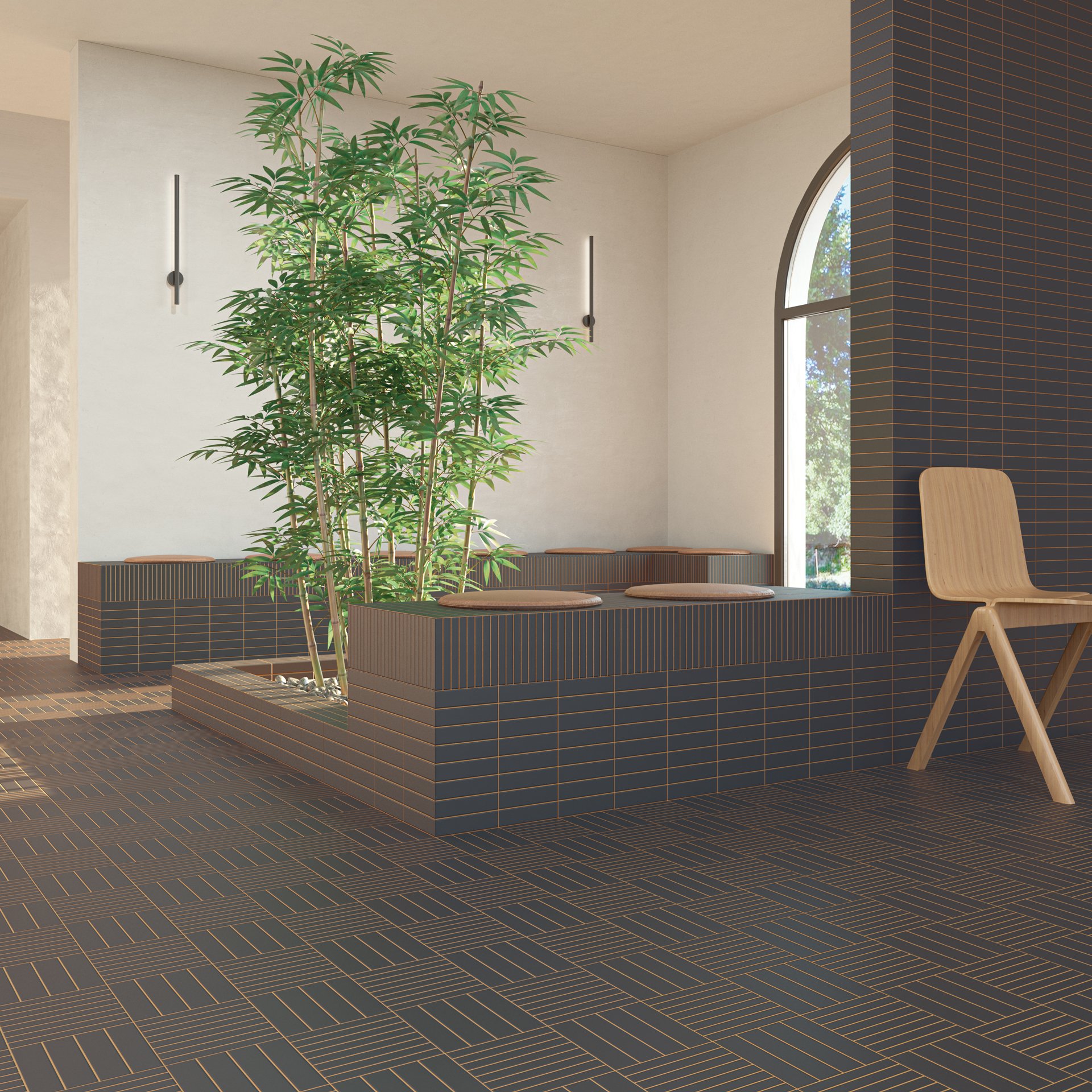

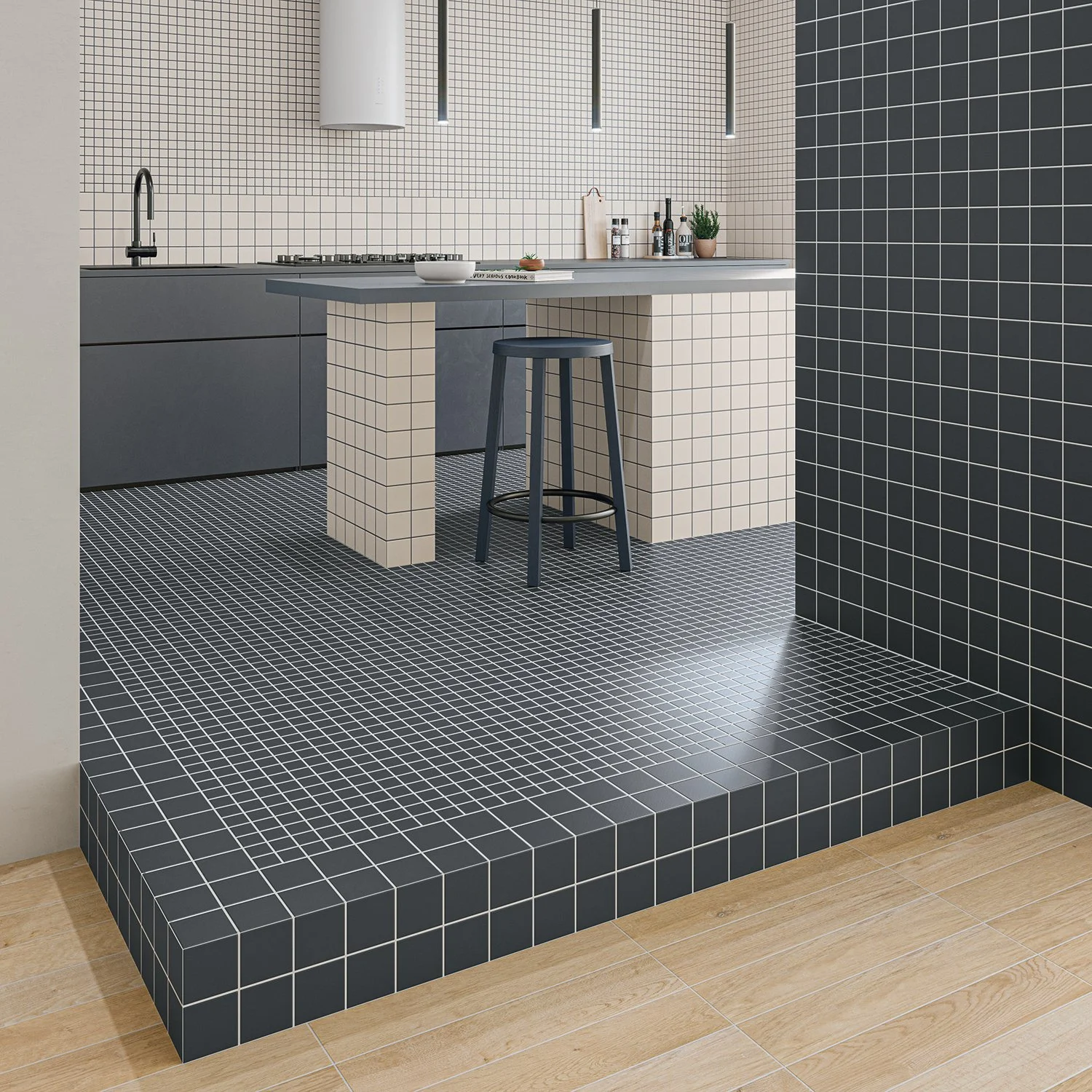

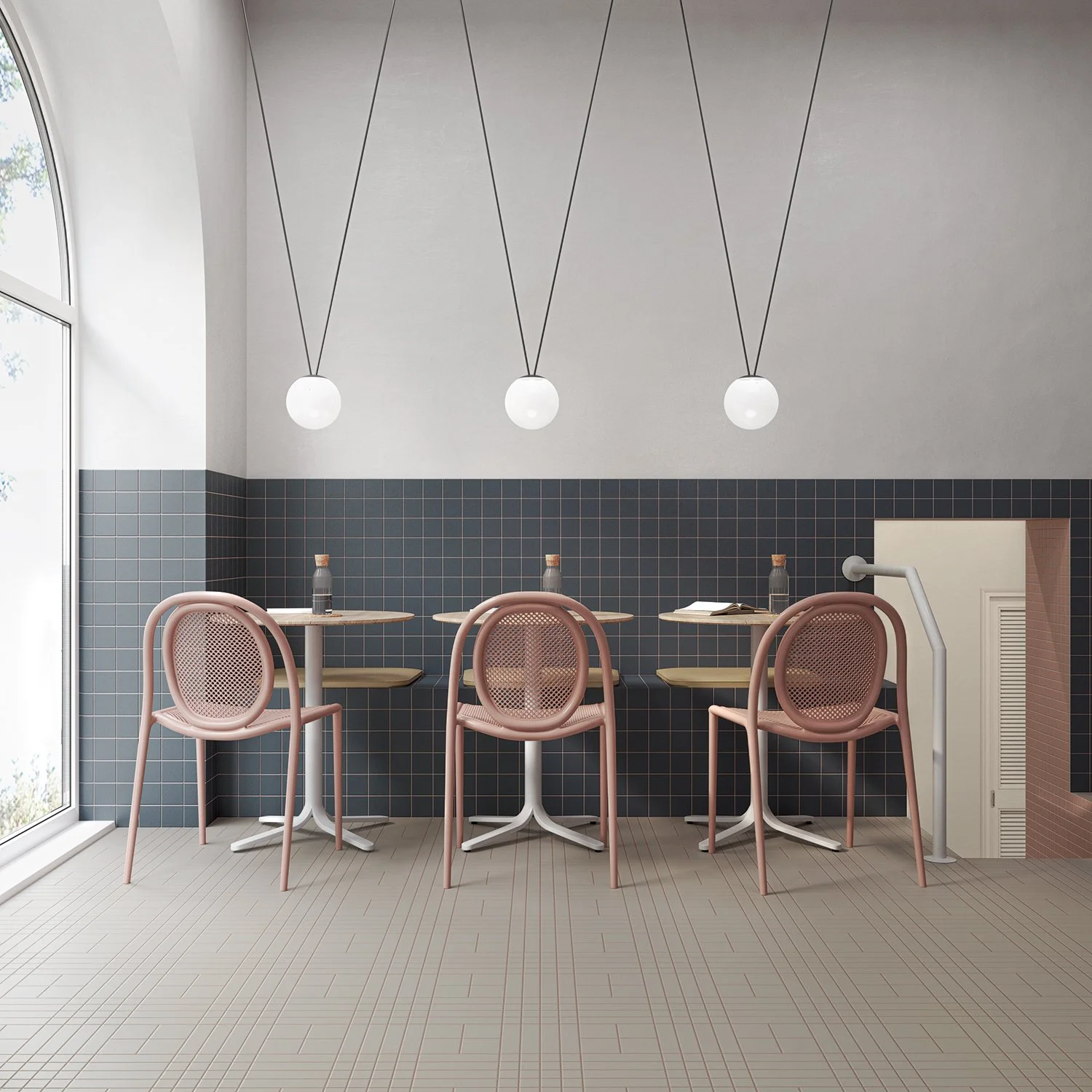

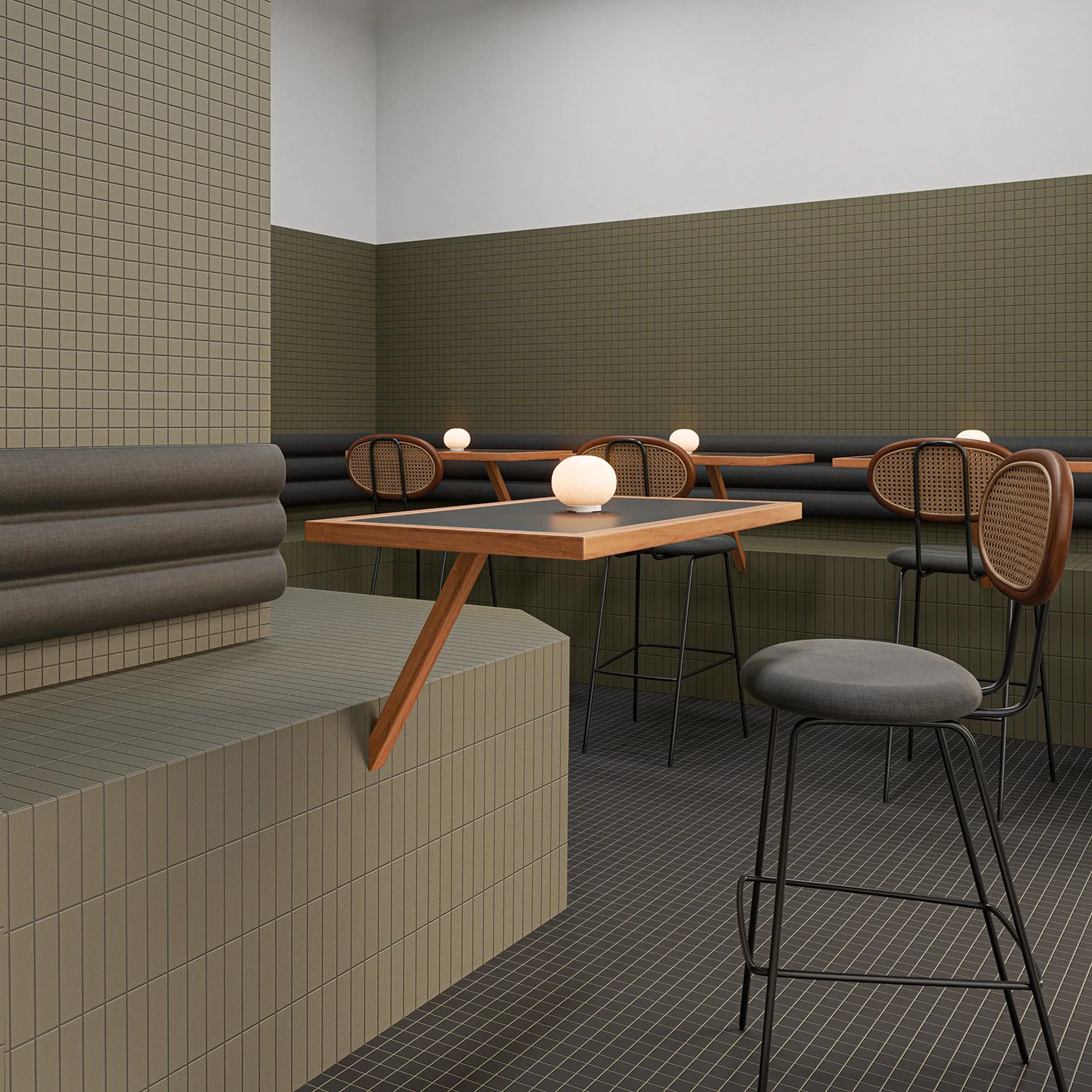

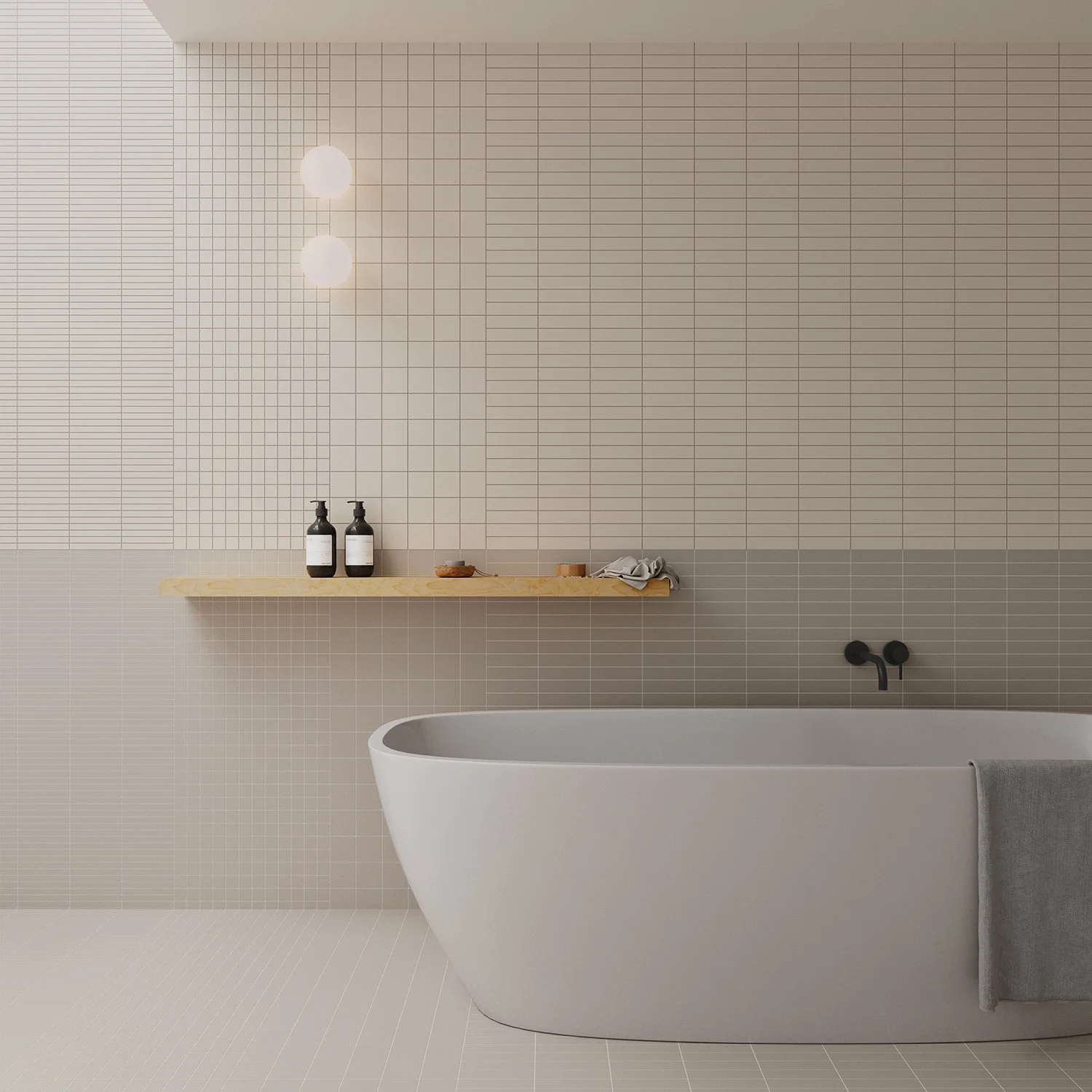

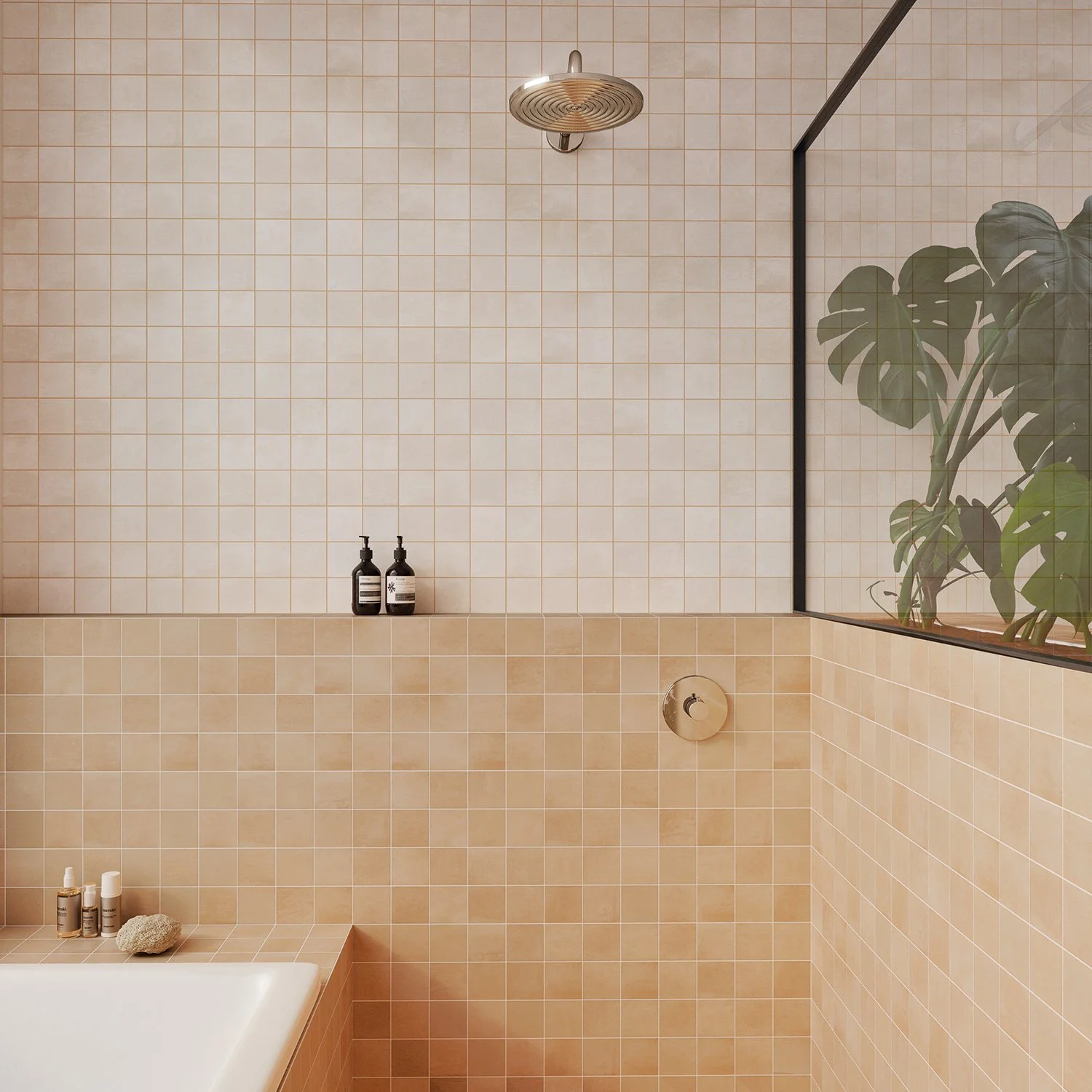

WOW RASTER Installations

Downloads

Brochure
Tech Specs
Sustainability

It is recommended that all tile products and related materials be installed as per TCNA standards.
All porcelain and stone product fabrication must adhere to OSHA standards and regulations.
